MDM join an already Azure AD joined Windows 10 PCs to Intune with a provisioning package



When working with a client the other day an Interesting situation came up where they had already used Azure AD for a while and now were ready to start using Intune for managing their Windows 10 PC’s. Prior to that they haven’t had any device management like ConfigMgr or Intune before. They also didn’t have any on-prem Active Directory and were only using cloud services like Azure AD and Office 365.



The question that came up was:

How do we enroll existing Windows 10 machines in Azure AD in to Intune and how can we do that with the minimum amount of effort from the end-user?



One of the ways to do it is by enabling the Enable automatic MDM enrollment using default Azure AD credentials policy but the client didn’t want their end-users or admins manually going in and enable that policy on each machine. So the discussion continued on how could me make it easier for the end user to do the things needed to enroll their device. In this post I will cover both the manual of doing it by enabling the policy but this is mainly to give it some context and from their I will show you how it can be done with the help of a provisioning package.

Once you have the provisioning package in place it’s just a matter of delivering it to the end-user in the most simple way possible and let the end-user run the provisioning package.





Enable automatic MDM enrollment using default Azure AD credentials



On all Windows 10 1703 and newer version of Windows there’s a local group policy that can be set to enroll in to MDM using logged on Azure credentials, this comes in handy in a 1 to 1 scenario where the end-user has their dedicated devices. If you have on-prem AD you can create a GPO for this policy but in this example we don’t have an on-prem AD.

Microsoft documentation can be found here:

https://docs.microsoft.com/en-us/windows/client-management/mdm/enroll-a-windows-10-device-automatically-using-group-policy





On the local machine, go to the Windows 10 start menu and search for “Edit group policy” and open it up with Administrative privileges.





Navigate to to Computer Configuration -> Administrative Templates -> Windows Components -> MDM and open up Enable automatic MDM enrollment using default Azure AD credentials and choose “Enable” and click on “Apply” and “Ok”





Once’s this is done 2 things happens,



This registry key gets created

HKLM:\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\MDM\AutoEnrollMDM = 1

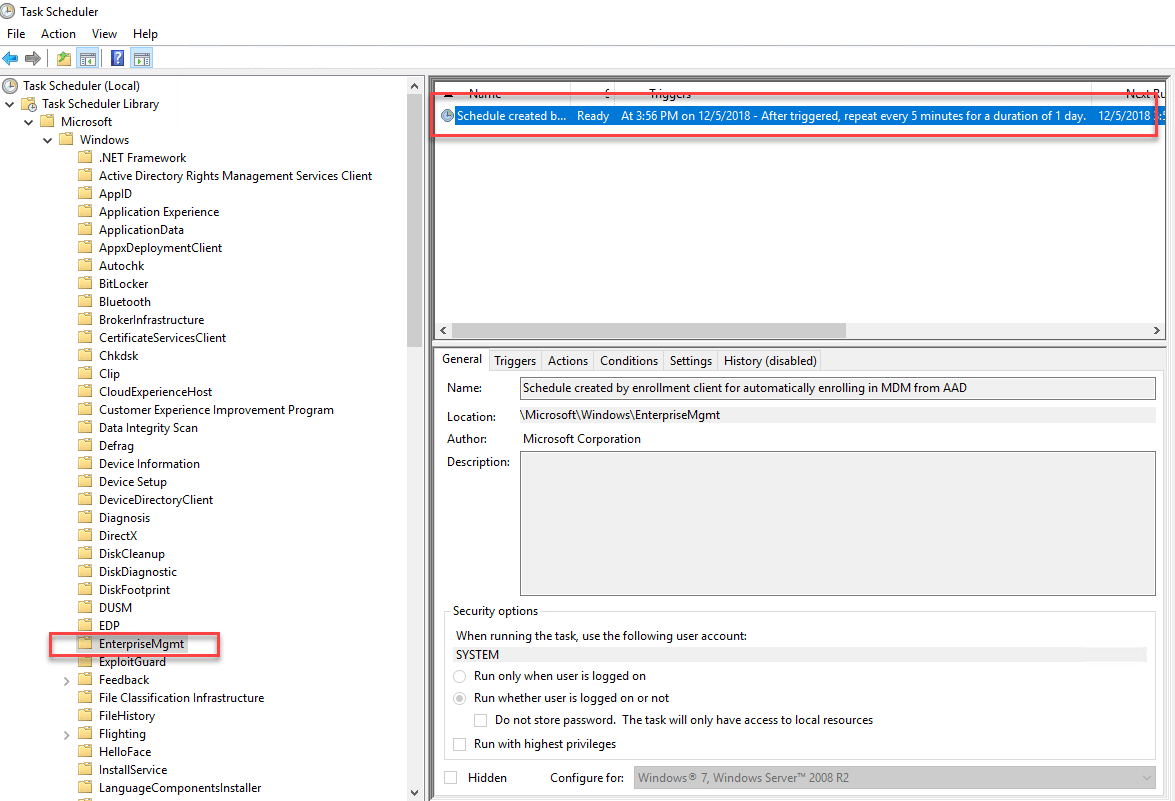

And a schedule task gets created by the name of “Schedule created by enrollment client for automatically enrolling in MDM from AAD” which can be found in the task scheduler under

Microsoft -> Windows -> EnterpriseMgmt







Logs and Monitoring



Once the everything is in place you can monitor the process in Event Viewer



From my own testing and experience you will see the following Error message “Auto MDM Enroll Failed (Unknown Win32 Error code 0x8018002b)” for a couple of hours but that’s totally normal and nothing to worry about.





In this specific example it took about 5 hours before it succeeded to do the MDM join and during this time a user was logged on to the machine. If the machine has no user logged on to it or its put to sleep or turned off the MDM join won’t happen.





Windows 10 provisioning package and Windows Configuration Designer



As mentioned earlier in this post if you have on-prem AD you can create a GPO for this policy an roll out it that way. But if you have no on-prem infrastructure at all to we have to find a easy way for the end-user so we can MDM join them without having to manually go in to local policy and enable the policy.



Microsoft documentation on Provisioning package and Windows Configuration Designer can be found here:

https://docs.microsoft.com/en-us/windows/configuration/provisioning-packages/provisioning-packages

https://docs.microsoft.com/en-us/windows/configuration/provisioning-packages/provisioning-install-icd



Side note.

In Windows Configuration Designer you are able to something called ADMXIngestion where you can inject ADMX files and configure their settings however I haven’t been able to get that to work when it comes to the MDM policy and its ADMX file. I’m not exactly sure why and while I’m trying to solve that I will instead focus this post on how to get around it and create the same settings as the policy does but with a powershell script instead.



Once you installed Windows Configuration Designer from either the Windows ADK or Microsoft Store it’s time to create the provisioning package we are about to use but to make this work.

We also need a powershell script and a .bat file that calls the powershell script within the provisioning package because there are some challenges when it comes to running powershell scripts directly.



The scripts



In this example we will be using MDMPS.ps1 as our powershell script and MDM.bat

With powershell we create a registry key and a Schedule task which is the same schedule task that runs if one manually enables the MDM join policy on the local computer.



<#
    .NOTES
    ===========================================================================
     Created on:    12/12/2018
     Modified on:   12/12/2018
     Created by:    Timmy Andersson
     Twitter:       @TimmyITdotcom
     Blog:          www.timmyit.com & https://blog.ctglobalservices.com/author/tan/
    ===========================================================================
    .DESCRIPTION
        MDM Join script. Creates a registry key and a schedule task to start the process to MDM join a computer.
#>

Begin{

$RegKey ="HKLM:\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\"
$RegKey1 ="HKLM:\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\MDM"
$ScheduleName = "Schedule created by enrollment client for automatically enrolling in MDM from AAD"
$Date = Get-Date -Format "yyyy-MM-dd"
$Time = (Get-date).AddMinutes(5).ToString("HH:mm:ss")

$ST = @"
<?xml version="1.0" encoding="UTF-16"?>
<Task version="1.3" xmlns="http://schemas.microsoft.com/windows/2004/02/mit/task">
<RegistrationInfo>
<Author>Microsoft Corporation</Author>
<URI>\Microsoft\Windows\EnterpriseMgmt\Schedule created by enrollment client for automatically enrolling in MDM from AAD</URI>
<SecurityDescriptor>D:P(A;;FA;;;BA)(A;;FA;;;SY)(A;;FRFX;;;LS)</SecurityDescriptor>
</RegistrationInfo>
<Triggers>
<TimeTrigger>
<Repetition>
<Interval>PT5M</Interval>
<Duration>P1D</Duration>
<StopAtDurationEnd>true</StopAtDurationEnd>
</Repetition>
<StartBoundary>$($Date)T$($Time)</StartBoundary>
<Enabled>true</Enabled>
</TimeTrigger>
</Triggers>
<Principals>
<Principal id="Author">
<UserId>S-1-5-18</UserId>
<RunLevel>LeastPrivilege</RunLevel>
</Principal>
</Principals>
<Settings>
<MultipleInstancesPolicy>Queue</MultipleInstancesPolicy>
<DisallowStartIfOnBatteries>false</DisallowStartIfOnBatteries>
<StopIfGoingOnBatteries>false</StopIfGoingOnBatteries>
<AllowHardTerminate>true</AllowHardTerminate>
<StartWhenAvailable>true</StartWhenAvailable>
<RunOnlyIfNetworkAvailable>true</RunOnlyIfNetworkAvailable>
<IdleSettings>
<StopOnIdleEnd>false</StopOnIdleEnd>
<RestartOnIdle>false</RestartOnIdle>
</IdleSettings>
<AllowStartOnDemand>true</AllowStartOnDemand>
<Enabled>true</Enabled>
<Hidden>false</Hidden>
<RunOnlyIfIdle>false</RunOnlyIfIdle>
<DisallowStartOnRemoteAppSession>false</DisallowStartOnRemoteAppSession>
<UseUnifiedSchedulingEngine>true</UseUnifiedSchedulingEngine>
<WakeToRun>false</WakeToRun>
<ExecutionTimeLimit>PT1H</ExecutionTimeLimit>
<Priority>7</Priority>
</Settings>
<Actions Context="Author">
<Exec>
<Command>%windir%\system32\deviceenroller.exe</Command>
<Arguments>/c /AutoEnrollMDM</Arguments>
</Exec>
</Actions>
</Task>

"@

}
Process
{

New-Item -Path $RegKey -Name MDM
New-ItemProperty -Path $RegKey1 -Name AutoEnrollMDM -Value 1

(Register-ScheduledTask -XML $ST -TaskName $ScheduleName -Force) | Out-null

}



Bat file executing the powershell script from the provisioning package



powershell.exe -noprofile -executionpolicy bypass -Command "& '%~dpn0PS.ps1'"





Putting it all together



Start with saving the powershell script and the .bat file. Once’s thats done open up Windows Configuration Designer and under the create section click on “Advanced provisioning”



Select “All Windows desktop editions





In the next step just click on “Finish” there’s no need to import a provisioning package.







Navigate to Runtime Settings -> ProvisioningCommands -> DeviceContext -> CommandFiles

Click on “Browse” and find the .PS1 script file and click on “Add” repeat this for the .Bat file as well.



You should now see the 2 added files under CommandFiles. In this example the MDMPS is the powershell script and MDM is the .Bat script.







Next thing is to click on “CommandLine” and add write “cmd.exe /c MDM.bat” this will tell the provisioning pack to run the .bat file and the .bat file will run the powershell script.



Now we just need to export the provisioning pack and to do so you click on “Export -> Provisioning package” in the top left corner





Give the provisioning package a name and click on “Next





You can encrypt the package or sign it with a certificate if you want, but since there’s no unique/sensitive or secret information in this specific package you don’t need to do this. Click “Next





Choose the path where you want to save your provisioning package to and click on “Next”





Click “Build





On the last page click on “Finish





Go the file location where you save the file and grab your newly created provisioning package







Applying provisioning package



When it comes to distribution there’s not much we can do without any prior management or on-prem AD so with this one solution is to just email the package to the end-users and just write a small guide on how they apply it.



There’s a few different ways of applying a provisioning package but in this example we will cover one way.



The file needs to be present on a Windows 10 1703 or later PC where the end user is logged on with their Azure AD credentials.



Double click on the provisioning package




If UAC is turned on and gives you a popup, click “Yes



a provisioning package warning will appear if its not signed, Click on “Yes, add it





And that’s it.



The powershell script will now create the schedule task and create the registry key needed to do the MDM Join. A few hours later the machine will be MDM Joined in the same way if you enabled the policy. For logs for the MDM join see the section Logs and Monitoring in this blog post.



If you want to make sure the provisioning package has been applied you can go to Windows start menu -> Settings -> Account -> Access Work or School  -> Add or Remove provisioning package







That’s all for now and until next time, cheers !
